Features

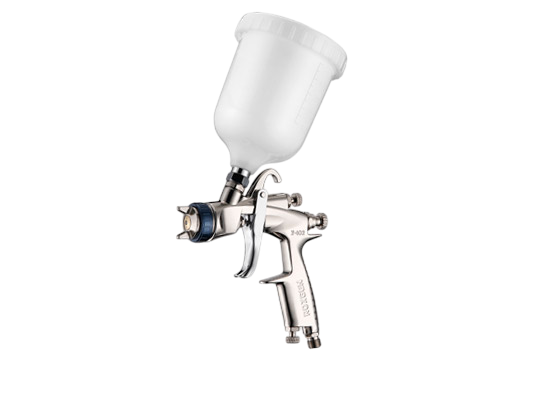

- X-402C is a specialized spray tool used in Automotive industry for coating.
- Various nozzle and air cap can be chosen for all professional spraying on Primer/Base/Clear coat.
- Efficiency work & Easy adjustment.
- Precision manufacturing create stable quality.
Specification
| Model | Type of Feed |
Nozzle Orifice Ømm(in) |
Air Cap |
Atomizing Air pressure Mpa(bar) |
Fluid Output Ml/min |
Air consumption l/min(cfm) |
Pattern Width mm(in) |
Weight g(lbs) |
| X-402-13GX | Central Gravity | 1.3 (0.051) | X4 | 0.2 (2.0) | 200 | 280(9.8) | 270(10.6) | 370 (0.81) |
| X-402-14GX | Central Gravity | 1.4 (0.055) | X4 | 0.2 (2.0) | 240 | 280(9.8) | 285(11.2) | 370 (0.81) |
| X-402-17GP | Central Gravity | 1.7 (0.067) | P2 | 0.2 (2.0) | 330 | 290(10.2) | 290(11.4) | 370 (0.81) |
| X-402-20GP | Central Gravity | 2.0 (0.071) | P2 | 0.2 (2.0) | 370 | 290(10.2) | 300(11.8) | 370 (0.81) |
Application: Automotive paint, Clear or Base paint, Mid-high or high viscosity paint.
