Features

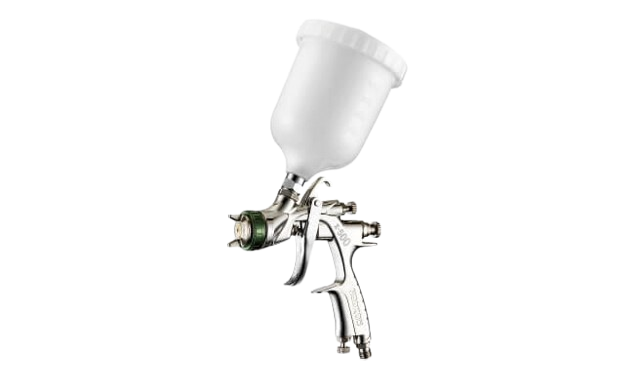

- X-500 is a specialized spray tool used in Automotive industry for coating.
- Various nozzle and air cap can be chosen for all professional spraying on Primer/Base/Clear coat.
- Efficiency work & Easy adjustment.
- Precision manufacturing create stable quality.
Specification
| Model | Type of Feed |
Nozzle Orifice Ømm(in) |
Air Cap |
Fluid Output Ml/min | Pattern mm |
Air Pressure of Gun Inlet psi (bar) |
Air Consumption l/min (cfm) |
Weight g(lbs) |
| X-500-13C1 |
Gravity |
1.3 (0.051) | BC1 |
220 | 280 | 36~43 (2.5~3) |
280 |
370 (0.81) |
| X-500-14C1 |
Gravity |
1.4 (0.055) | BC1 |
265 | 300 | 36~43 (2.5~3) |
280 |
370 (0.81) |
| X-500-13C2 |
Gravity |
1.3 (0.051) |
BC2 |
200 | 260 | 29~36 (2~2.5) |
220 | 370 (0.81) |
| X-500-14C2 |
Gravity |
1.4 (0.055) | BC2 |
220 | 280 | 29~36 (2~2.5) |
220 | 370 (0.81) |
| X-500-13P1 | Gravity | 1.7 (0.068) | BP1 | 380 | 300 | 36~43 (2.5~3) | 280 | 370 (0.81) |
| X-500-20P1 | Gravity | 2.0 (0.079) | BP1 | 450 | 320 | 36~43 (2.5~3) | 280 | 370 (0.81) |
