Features
- Easy operation. Air intake and spray pattern width could be adjusted. When adjust air, it is unnecessary to stop operation.

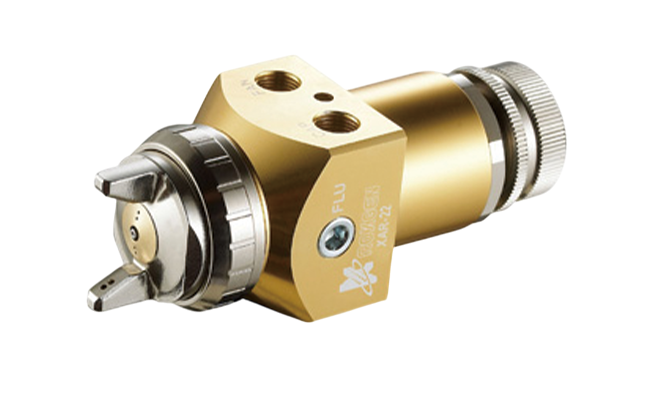

- XAR-22 High performance automatic spray gun is ideal for robotic arm and applications requiring precise spray pattern control.
- Application: Computer case, Mobile phone shell, Cosmetic shell, Furniture, Hand tools, Textile, Glass, Die-casting, Ironmongery industry.
Specification
| Products Model | Type of Feed | Nozzle orifice Ø mm (in) | Air Cap |
Air consumption l/min(cfm) |
Air pressure Mpa (bar/psi) FAN | Fluid output ml/min | Air Consumpation l/min(cfm) | Pattern Width mm(in) | Wieght g(lbs) |
| XAR-22-12P | Pressure | 1.2(0.047) | G2P | 0.24(2.4/34) |
0.27(2.7/38) | 300 | 530(18.7) | 400(15.7) | 380(0.84) |
