Features
- Low air pressure, high flow, the pressure in the air cap below 0.7kg/cm² (10psi).
- Fine Aerosol Particles, even atomization with high adhesion.
- Stable painting quality.

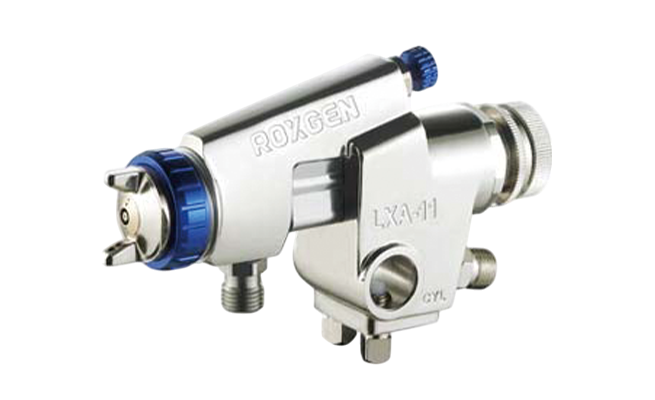

- LXA-11 is suitable for automatic painting equipment. Many nozzle size available according to your demand.
Specification
| Products Model | Type of Feed | Nozzle orifice Ø mm (in) | Air Cap |
Air consumption l/min(cfm) |
Fluid Output ml/min | Air consumption l/min(cfm) | Pattern Width mm (in) |
Weight g(lbs) |
| XA-11L-08 P | Pressure | 0.8 (0.031) | LV4 |
0.29 (3.0/43) |
330 | 430 (15.2) | 200 (7.9) | 410(0.90) |
| XA-11L-10 P | Pressure | 1.0 (0.039) | LV4 | 0.29 (3.0/43) | 330 | 410 (14.5) | 200 (7.9) | 410(0.90) |
| XA-11L-12 P | Pressure | 1.2 (0.047) | LV4 | 0.29 (3.0/43) | 150 | 410 (14.5) | 200 (7.9) | 410(0.90) |
