Features
- Fine Aerosol Particles, even atomization with high adhesion.
- Stable painting quality.

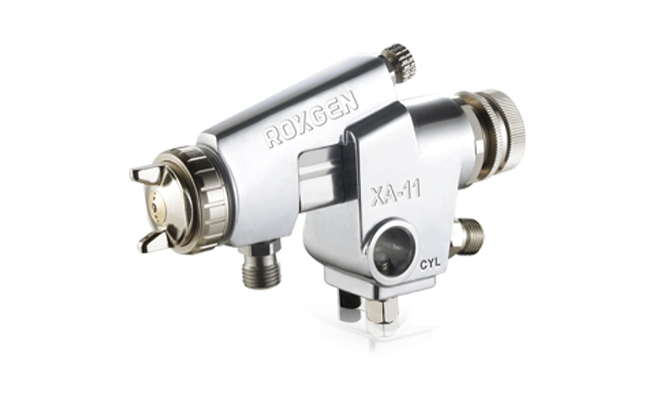

- XA-11 is suitable for automatic painting equipment. Many nozzle size available according to your demand.
Specification
| Products Model | Type of Feed | Nozzle orifice Ø mm (in) | Air Cap |
Air consumption l/min(cfm) |
Fluid Output ml/min | Air consumption l/min(cfm) | Pattern Width mm (in) |
Weight g(lbs) |
| XA-11-08 P | Pressure | 0.8 (0.031) | E2P |
0.29 (3.0/43) |
150 | 270 (9.5) | 190(7.5) | 410(0.90) |
| XA-11-10 P | Pressure | 1.0 (0.039) | E2P | 0.29 (3.0/43) | 200 | 270 (9.5) | 220(8.7) | 410(0.90) |
| XA-11-13 P | Pressure | 1.3 (0.051) | H2 | 0.24 (2.5/36) | 250 | 260 (9.2) | 230(9.1) | 410(0.90) |
| XA-11-15 P | Pressure | 1.5 (0.059) | H2 | 0.24 (2.5/36) | 270 | 260 (9.2) | 245(9.6) | 410(0.90) |
| XA-11-18 P | Pressure | 1.8 (0.071) | N1 | 0.24 (2.5/36) | 310 | 190 (6.7) | 240(9.4) | 410(0.90) |
