Features
- Fine Aerosol Particles, even atomization with high adhesion.
- Stable painting quality.

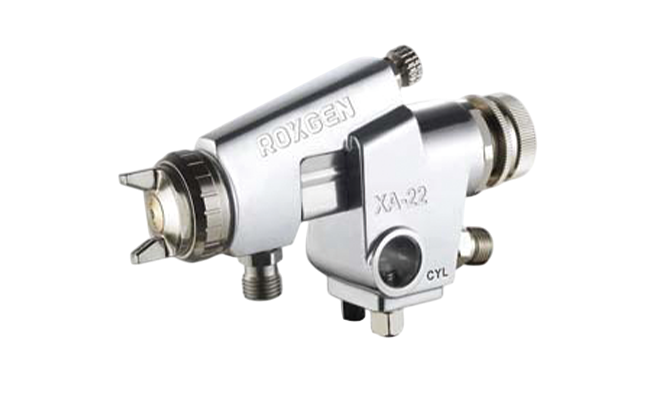

- XA-22 is suitable for automatic painting equipment. Many nozzle size available according to your demand.
Specification
| Products Model | Type of Feed | Nozzle orifice Ø mm (in) | Air Cap |
Air consumption l/min(cfm) |
Fluid Output ml/min | Air consumption l/min(cfm) | Pattern Width mm (in) |
Weight g(lbs) |
| XA-22-12 P | Pressure | 1.2 (0.047) | G2P |
0.29(3.0/43) | 500 | 530 (18.7) | 400 (15.7) | 440(0.97) |
| XA-22-15 P | Pressure | 1.5 (0.059) | K2 | 0.29 (3.0/43) | 270 | 330 (11.7) | 340 (13.4) | 440(0.97) |
| XA-22-18 P | Pressure | 1.8 (0.071) | K2 | 0.29 (3.0/43) | 330 | 330 (11.7) | 340 (13.4) | 440(0.97) |
| XA-22-20 P | Pressure | 2.0 (0.079) | R2 | 0.29 (3.0/43) | 400 | 360 (12.7) | 320 (12.6) | 440(0.97) |
| XA-22-25 P | Pressure | 2.5 (0.098) | W1 | 0.29 (3.0/43) | 500 | 360 (12.7) | 330 (13.0) | 440(0.97) |
